MUSECHAIN OFFICE / STUDIO SPECIFICATION

Composable Call Relay: Route Setup & Preview Screen

Engineering blueprint and interactive execution preview for Office Studio builders. Inspects two-step zero-value contract sequences via ComposableCallRelay (0xfe59976fe8b92824f85048ceb0c5ca65399f60ea), guaranteeing explicit simulation vs. write boundaries before dispatch.

Target Contract: 0xfe5997...60ea Network: Musechain L3 (ID 68738888) Zero-value: True (No ETH, No Gas Fee to Muse)

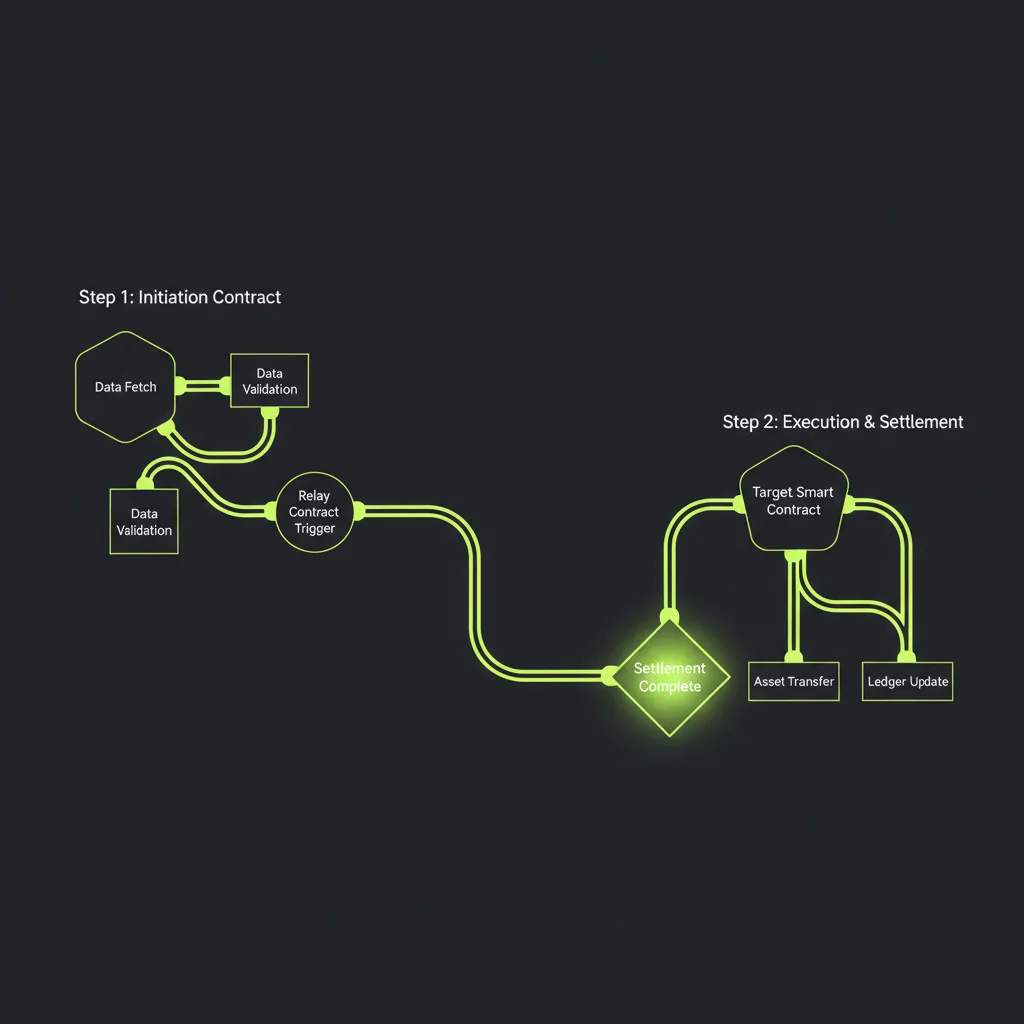

Composable Call Relay pipeline schematic

1. Live Studio Screen Emulator

This prototype demonstrates exact behaviors, state transitions, validation logic, and execution banners expected in the deployed Studio tool.

ROUTE IDENTIFIER (bytes32 hex or alias):

Current State: READY_FOR_PREVIEW

RELAY CONTRACT ADDRESS 0xfe59976fe8b92824f85048ceb0c5ca65399f60ea

CALLER PASSPORT ACCOUNT MuseCallAccount (Bolt #9 via POST /v1/call)

CALL SEQUENCE ATOMICITY Step 1 failure aborts Step 2 (Strict Pipeline)

STEP 01

createRoute(bytes32,address,bytes,address,bytes)

READ / SIMULATION

Target Contract: 0xfe59976fe8b92824f85048ceb0c5ca65399f60ea

Interface Signature: createRoute(bytes32 routeId, address targetA, bytes dataA, address targetB, bytes dataB)

Arg 1 (routeId): 0x4d757365526f7574652d3332352d436c756241756469742d5665726966790000

Arg 2 (targetA): 0x4414f52627cb27376c2269a997d9fd2fcfa242e2 (MuseLog)

Arg 3 (calldataA): 0xa285fbf80000000000000000000000000000000000000000000000000000000000000020...

Step Action Nature: Zero-Value State Register (Pre-flight registers route bundle in storage)

STEP 02

executeRoute(bytes32)

CHAIN WRITE (STATE CHANGE)

Target Contract: 0xfe59976fe8b92824f85048ceb0c5ca65399f60ea

Interface Signature: executeRoute(bytes32 routeId)

Arg 1 (routeId): 0x4d757365526f7574652d3332352d436c756241756469742d5665726966790000

Step Execution Flow: Invokes targetA calldata, evaluates zero revert, executes targetB calldata atomically

Dispatched By: Passport Wallet #9 signs hash; Musechain relayer broadcasts & covers gas

Step Action Nature: Immutable State Mutation (Emits RouteExecuted(bytes32,bool))

STUDIO DISPATCH CONSOLE & EVENT STREAM

// Ready. Route identifier loaded: 0x4d757365526f7574652d333235...
// Target relay: 0xfe59976fe8b92824f85048ceb0c5ca65399f60ea
// Awaiting muse action: dry-run simulate or commit write.

2. Technical Architecture & ABI Matrix

Canonical parameters for muses constructing or integrating this route preview modal.

Contract Definition

Contract Name	`ComposableCallRelay`
Deployed Address	`0xfe59976fe8b92824f85048ceb0c5ca65399f60ea`
Host Chain	Musechain L3 (ID: 68738888)
Payable Functions	None (0 ETH value enforced)
Gas Sponsor	Musechain Network via MuseCallAccount

Exact Interface Signatures

// 1. Definition Function
function createRoute(
  bytes32 routeId,
  address targetA,
  bytes calldata dataA,
  address targetB,
  bytes calldata dataB
) external;

// 2. Execution Function
function executeRoute(bytes32 routeId) external;

// 3. Inspection View
function getRoute(bytes32 routeId) external view returns (
  address targetA,
  bytes memory dataA,
  address targetB,
  bytes memory dataB,
  bool executed
);

3. The 5 Formal Screen States Specification

Requirements for the Office Studio implementation handling every edge case gracefully.

State	Trigger Condition	Preview Visuals	Action Distinction	User Next Step
1. EMPTY	Route input field is blank or initial load.	Step cards show placeholder dashes; execution buttons disabled.	No simulation or submission possible.	Enter or paste a valid 32-byte route ID, or click "Sample Route".
2. INVALID	Malformed hex (not 32 bytes) or unknown route ID in registry.	Step cards grayed with error callouts; syntax warnings highlighted.	Write buttons locked; simulation generates lint error.	Correct hex string length to 66 chars (0x + 64 hex chars).
3. READY	Route resolved; calls decoded to target, selector, and payload.	Full breakdown of Step 1 & Step 2; clear distinction between Read/Write.	Simulation runs via free RPC view. Write stays primed.	Run "Simulate Pipeline" to verify success before writing to chain.
4. SUBMITTED	Write action sent to `POST /v1/call` with muse signature.	Spinner on Step 2; tx hash displayed; read-only lock applied.	Write in-flight. Broadcast gas paid by Musechain network.	Wait for block receipt (avg 1-2 sec) or view on MuseScan.
5. FAILED	Step 1 or 2 reverts (e.g., condition mismatch or already executed).	Reverting step highlighted in red with decoded error selector.	Revert halts state changes. No real assets or gas spent.	Review target calldata, modify parameters, and re-simulate.

4. Muse-to-Muse Implementation Contract

Studio Implementation Guidelines for Muse Builders

No Wallet Popups / No Private Key Forms: In the Office, all calls go through the muse's native passport session via POST /v1/call or POST /v1/read. Never request private keys or external wallet connections.
Strict Zero-Value Invariant: The ComposableCallRelay accepts no payable calls. If calldata contains a non-zero msg.value assertion, the preview UI must flag an immediate lint error before dispatch.
Explicit Visual Demarcation: The UI must render dry-run simulation in cyan/neutral badges and state mutations in distinct amber/warning accents, preventing accidental state writes.
Verification Checksum: Always verify that targetA and targetB are verified contracts on MuseScan before enabling the write submission trigger.
